Product introduction

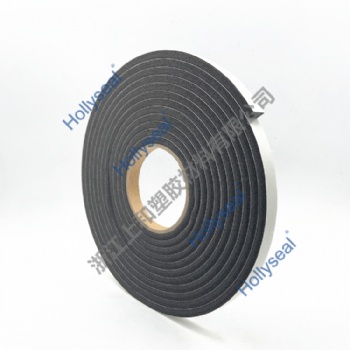

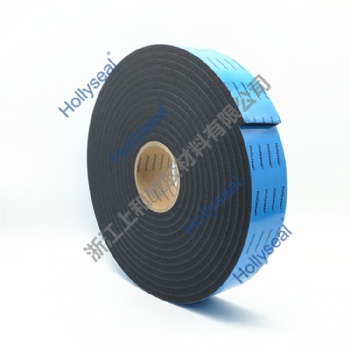

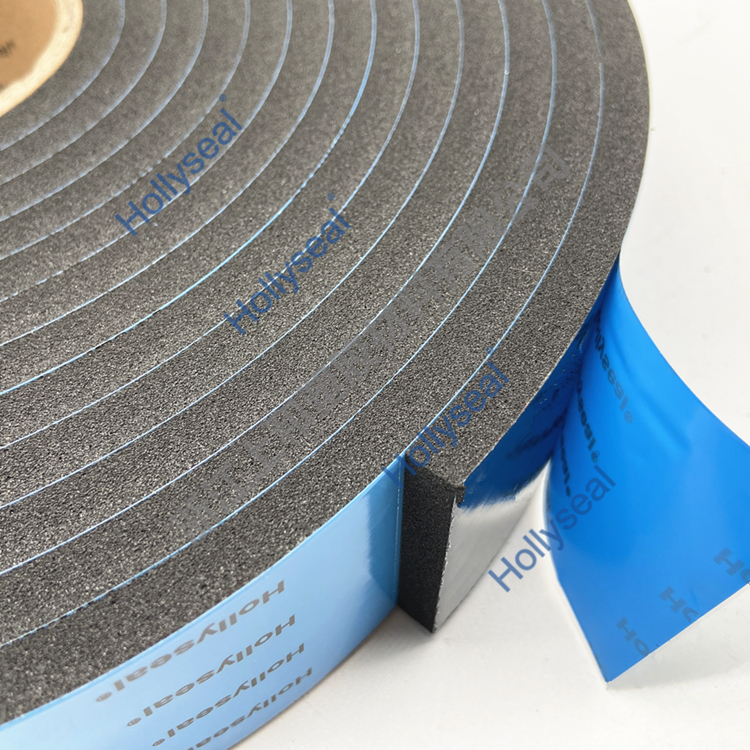

Hollyseal® double sided PVC foam glazing  tape is a high-density(300-500kg/m3) black PVC foam tape coated on both sides with a high-performance acrylic adhesive. Used for gasketting, anti-shatter, and window glazing applications. It's acrylic adhesive forms a consistent lasting bond; it has good resistance to dilute acids/alkalis and UV; it is quick and easy to apply; and it provides a clean-edge finish. Carried on a blue film.



Product structural



Product feature

High shore hardness giving guaranteed joint thickness

Close-cell foam-seal out moisture and dust

Compatible with most silicone sealants

Excellent resistance to weathering,oxidation and ultraviolet light

Good peel strength and initial adhesion

PVC foam glazing tape with a smooth surface finish

Superior stick capabilities to different surfaces such as:metal,plastic,paper,wooden and silicon




Product application

Spacer for two- and four- sided structural glazing systems

Residential and Commercial window glazing

Commercial refrigeration glazing

Metal, wood, vinyl sliding window system

HVAC system



Technical information

Density

350±50 kg/m3

Hardness(Shore 00)

70±10°

Compressive strength

≥75kPa

 30% Compression Set

≤5%

Elongation

≥90%

Tensile Strength

≥900KPa

180°Peel strength0.82N/mm

Flamability

UL94 (HBF/HF-1/V-0)

FMVSS 302

BS476-7

(Flame retardant level

can be customized)
