P350

  • Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape
  • Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape
  • Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape
  • Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape
Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape

Double Sided Strong Adhesive PVC Glazing Tape Structural Spacer Tape

Product introduction

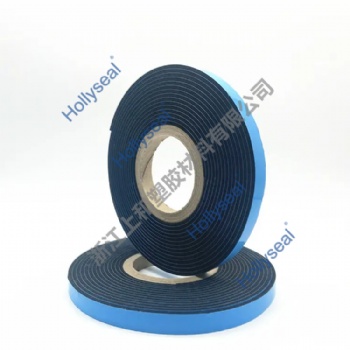

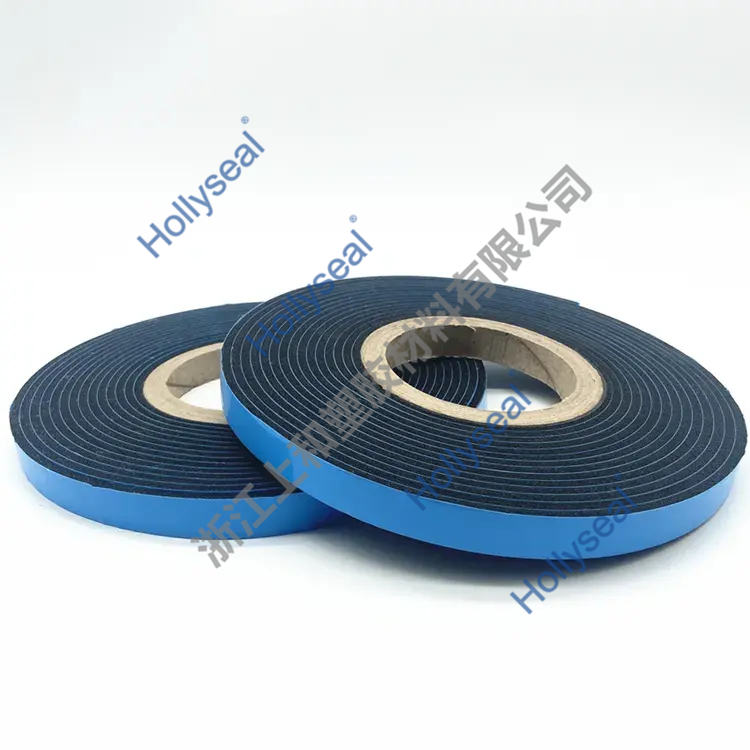

Hollyseal® double sided PVC foam glazing  tape is a high-density(300-500kg/m3) black PVC foam tape coated on both sides with a high-performance acrylic adhesive. Used for gasketting, anti-shatter, and window glazing applications. It's acrylic adhesive forms a consistent lasting bond; it has good resistance to dilute acids/alkalis and UV; it is quick and easy to apply; and it provides a clean-edge finish. Carried on a blue film.



Product structural



Product feature

High shore hardness giving guaranteed joint thickness

Close-cell foam-seal out moisture and dust

Compatible with most silicone sealants

Excellent resistance to weathering,oxidation and ultraviolet light

Good peel strength and initial adhesion

PVC foam glazing tape with a smooth surface finish

Superior stick capabilities to different surfaces such as:metal,plastic,paper,wooden and silicon




Product application

Spacer for two- and four- sided structural glazing systems

Residential and Commercial window glazing

Commercial refrigeration glazing

Metal, wood, vinyl sliding window system

HVAC system



Technical information

Density
350±50 kg/m3
Hardness(Shore 00)
70±10°
180°Peel Strength
0.82N/mm
Compressive strength≥75kPa
 30% Compression Set
≤5%
Elongation ≥90%
Tensile Strength

≥900kPa

Flamability

 UL94 (HBF/HF-1/V-0)

FMVSS 302

BS476-7

(Flame retardant level can be customized)
