P350

  • High Density PVC Foam Tape with Blue PET Film
  • High Density PVC Foam Tape with Blue PET Film
  • High Density PVC Foam Tape with Blue PET Film
  • High Density PVC Foam Tape with Blue PET Film
High Density PVC Foam Tape with Blue PET Film High Density PVC Foam Tape with Blue PET Film High Density PVC Foam Tape with Blue PET Film High Density PVC Foam Tape with Blue PET Film

High Density PVC Foam Tape with Blue PET Film

Product introduction

Hollyseal® double sided PVC foam glazing  tape is a high-density(300-500kg/m3) black PVC foam tape coated on both sides with a high-performance acrylic adhesive. Used for gasketting, anti-shatter, and window glazing applications. It's acrylic adhesive forms a consistent lasting bond; it has good resistance to dilute acids/alkalis and UV; it is quick and easy to apply; and it provides a clean-edge finish. Carried on a blue film.



Product structural



Product feature

1.High shore hardness giving guaranteed joint thickness

2.Close-cell foam-seal out moisture and dust

3.Compatible with most silicone sealants

4.Excellent resistance to weathering,oxidation and ultraviolet light

5.Good peel strength and initial adhesion

6.PVC foam glazing tape with a smooth surface finish

7.Superior stick capabilities to different surfaces such as:metal,plastic,paper,wooden and silicon




Product application

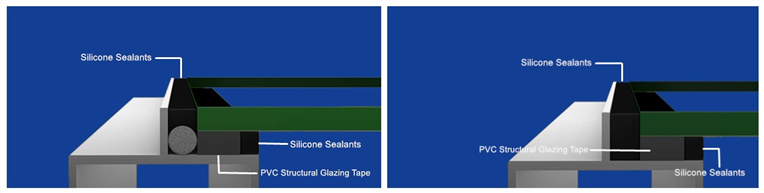

1.Spacer for two- and four- sided structural glazing systems

2.Residential and Commercial window glazing

3.Commercial refrigeration glazing

4. Metal, wood, vinyl sliding window system

5. HVAC system



Technical information

Density
300-500 kg/m3
Hardness(Shore 00)
55-90°
180°Peel Strength
0.82N/mm
 30% Compression Set
≤7%
Elongation ≥70%
Tensile Strength

≥800kPa

                         Flamability

                    UL-94 HF-1/HBF

                       FMVSS 302

               (V0 can be customized)
